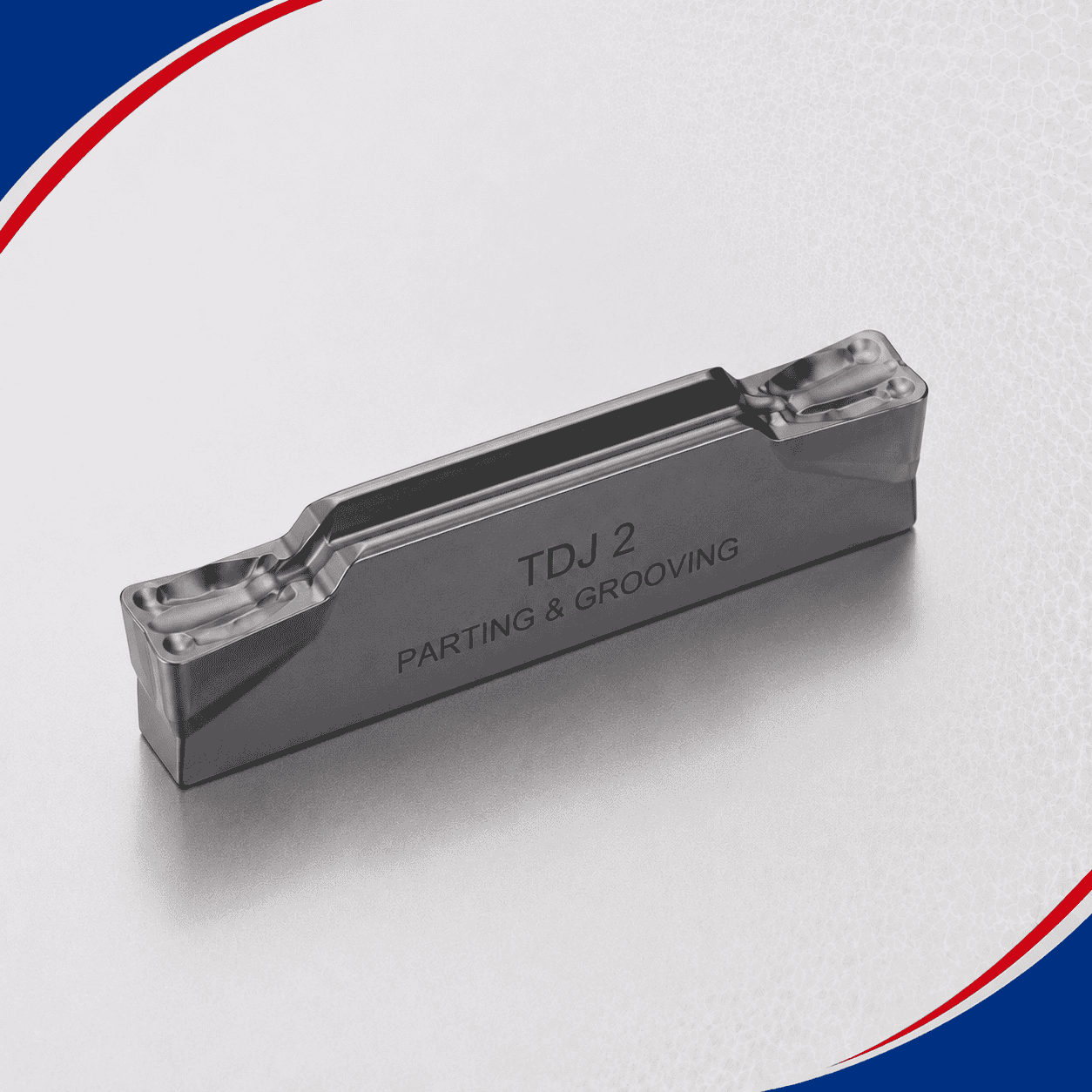

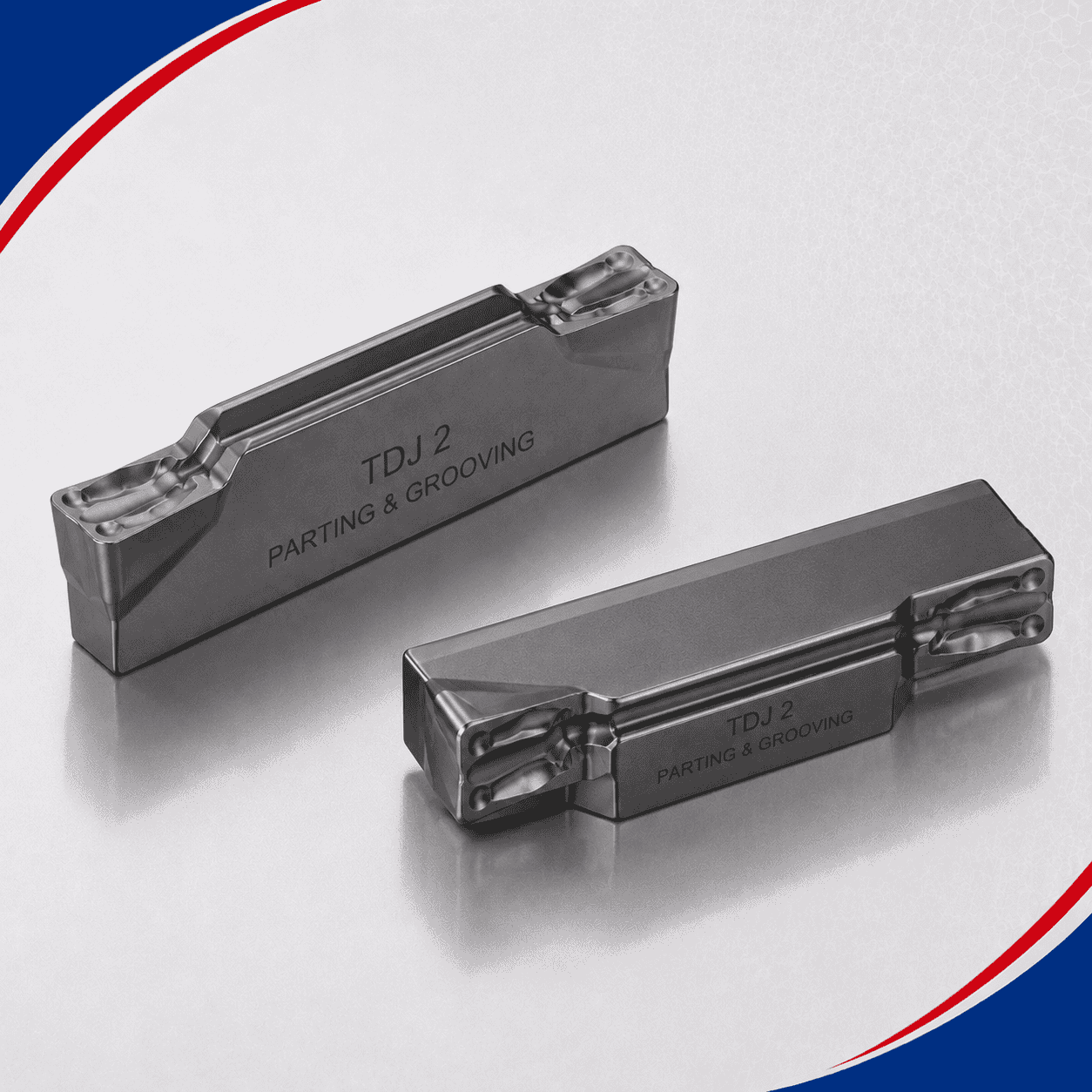

TDJ 2 Parting and Grooving Insert – 2 mm Width

The 2 mm wide double ended TDJ 2 Parting and Grooving Insert, giving two cutting edges per insert. It is the narrowest of the three widths we stock, which means the least material lost in the kerf on every cut – a real saving when you are parting hundreds of components from bar.

That narrowness is also its limitation, and understanding where the limit sits is the difference between a blade that lasts and a blade that snaps.

📦 Minimum Order Quantity (MOQ): 10 Units

Request a Quote

Categories: , Product ID: 27235

Description

Where the TDJ 2 Parting and Grooving Insert Works Best

  • Small diameter bar work where the parting depth is short and the blade does not have to reach far
  • Narrow grooves – circlip grooves, O-ring seats, thread relief and undercuts at 2 mm width
  • High volume parting where the accumulated material saving from a narrow kerf is significant
  • Automatic and sliding head lathes running small components in volume

Specifications of TDJ 2 Insert

Attribute Value
Designation TDJ 2
Cutting width 2 mm
Construction Double ended, two cutting edges per insert
Application Parting off, external grooving, circlip and O-ring grooves
Holder type TDJ / TDC style parting blade holders
ISO material groups P steel, M stainless steel, K cast iron
